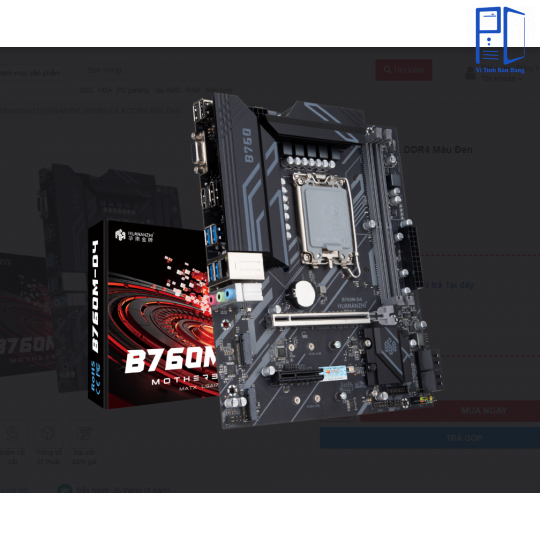

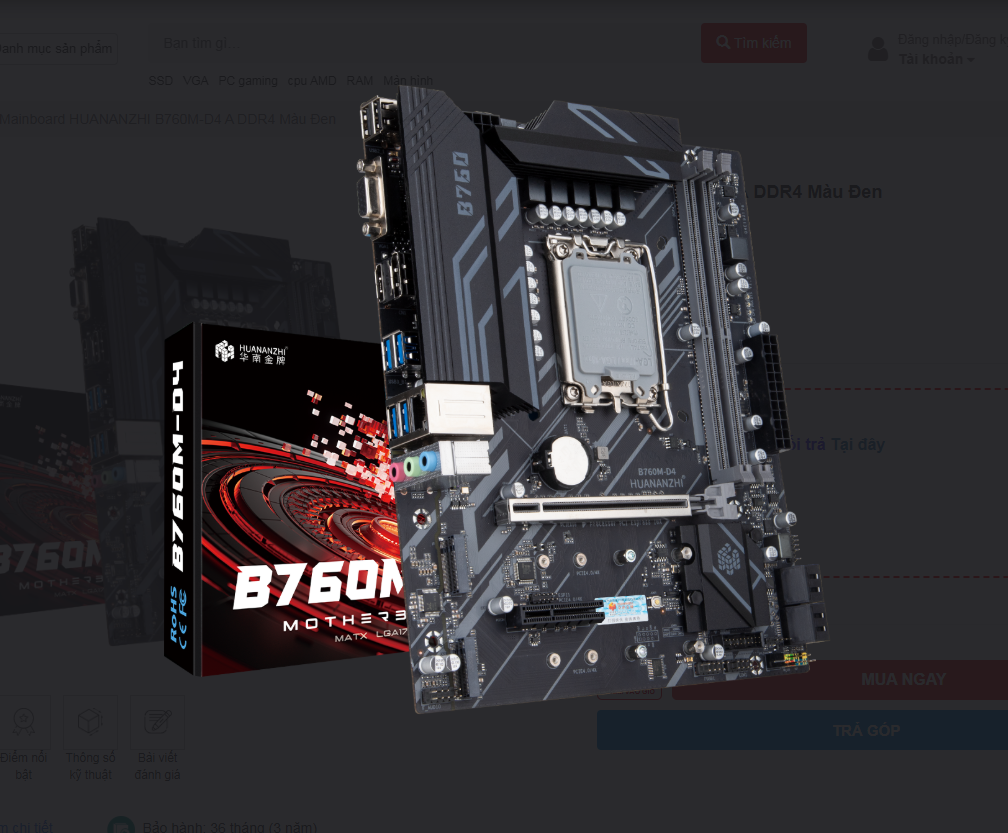

Mainboard HUANANZHI B760M-D4 A

Ô38 Đường N8-5B, TT. Lai Uyên, Bàu Bàng, Bình Dương

0961.060.616

0818.012.018

MÔ TẢ SẢN PHẨM

BẢNG THÔNG SỐ CHI TIẾT:

Model	HUANANZHI B760M-D4 Motherboard.
Main chipset	Intel B760
CPU Socket	Support Intel LGA1700
Memory slot	2 x DDR4 memory slot
Memory standard	Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent)，Max support 64GB
Storage interface	4xSATA3.0 6Gbps interfaces
Expansion Slots	1xPCI Expressx16 4.0，1xPCI Expressx4 4.0
Expansion interface	2xM.2 22110 NVME PCIE X4 4.0
Soud Track	Realtek High Fidelity Audio
Network Card	Realtek Gigabit Network Card
Power interface	24pin+8pin
FAN PIN	1xCPU_FAN PIN，2xSYS_FAN PIN
power supply	10-phase power supply
PCB layers	6-layer PCB
Dimension	235*195MM M-ATX
Rear panel interface	2xUSB3.2 Gen2 10Gb/s，2xUSB2.0 480Mbps，1xVGA，1xHDMI2.1，1xDP1.4 ，1x Network card interface，1x3-hole audio interface
Front panel interface	1 x USB2.0 PIN 480Mbps，1 x USB3.2 PIN Gen1x15Gb/s，1 x Front audio PIN，1 xCOMPIN，1x Debug pin
Support system	Windows10 Windows11
BIOS	AMI UEFI BIOS
Packing list	1 x Motherboard，1x SATA data cable，1xWarranty card
